Test Signal Generator for Analog Displays

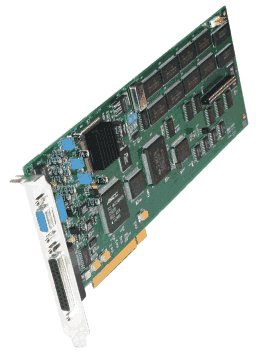

The VTG-3030 PCI board is an analog video generator, designed for testing, evaluating and servicing many types of CRT, analog input displays and other devices. It supplies all the necessary signals for displaying test patterns at various timing formats required by CRT and other devices with analog inputs.

Superior tools and software for your testing needs

UNIGRAF VTG software and hardware supply the user with efficient solutions.
It is easy to build test sequences for manufacturing, burn-in, quality control and service routines. If your needs are simple, the WinVTG.exe user interface will do everything you need. When you are developing your own ATE applications we will supply the DLLs and Drivers you need.

Powerful programmability and software support

· Maximum 300 MHz pixel frequency
· WinVTG .exe User Interface for Windows™(95, 98, NT, 2000)
· DLL for application programming
· Bitmap support for multiple file formats:.bmp .gif .jpeg .pcd .pcx .png .tif
· ATE support, VESA DPMS and DDC
· Unlimited number of permanent programmable patterns, timings, colors, palettes, signal formats and sequences
