Test Pattern
Card for Digital Displays

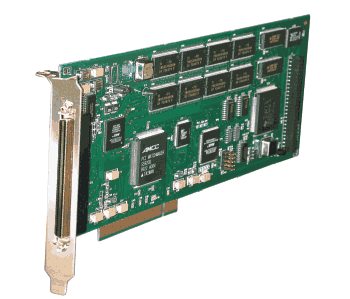

The VTG-3112 PCI board is a digital video signal source designed
for testing, evaluating and servicing different types of Flat Panel
Displays in manufacturing, research & development. It can supply
the necessary signals for displaying test pictures on LCD, EL and
Plasma Displays or other equipment using digital video inputs, colour
or monochrome.
Excellent tools for testing
VTG software comes with a set of commonly-used
timings and test patterns. For user’s special needs it is simple to
edit and modify them and save for further use. It offers complete
single pixel control in any timing and pattern including text with
bitmap and vector fonts. It is easy to build test sequences for
manufacturing, burn-in, quality control and service routines. Also
multiple cards can be controlled in one PC.
Unigraf VTG Software and Hardware offer quick, easy and powerful tools
designed precisely for various types of video testing applications of
today and tomorrow.
Easy
& Efficient Interfacing Control
The large variation in the interface signalling required by different
types of displays is solved by versatile
VTG Interface Adapter bus. Different VIA- and DIA- adapters, supporting
various display interfaces, can be connected to VTG-3112. New adapters
can be developed as the interfaces and standards improve and change.
Powerful
programmability and software support
· Max 130 MHz double pixel clock enabling 260 MHz pixel frequency
· WinVTG.exe User Interface forWindows™ (95, 98, NT, 2000, XP)
· DLL for application programming
· Bitmap support for multiple file formats: .bmp .gif .jpeg .pcd .pcx
.png .tif
· ATE support, VESA DPMS and DDC
· Unlimited number of permanent programmable patterns, timings, colors,
palettes, signal formats and sequences
|
