VTG-CVA 2
|
  |

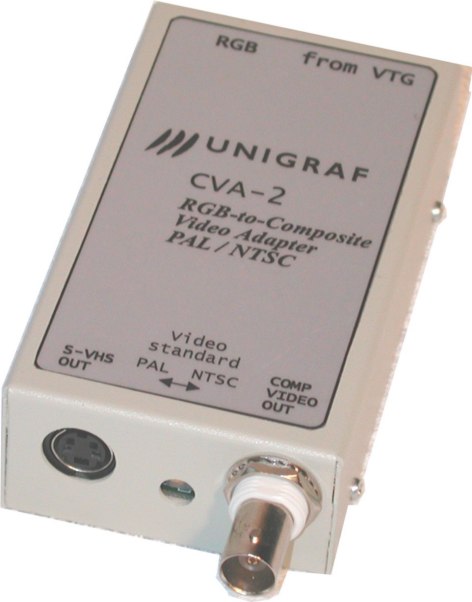

Composite video output adapter CVA-2 is an adapter that converts the analog RGB from VTG into composite video and S-video formats. The selection between PAL and NTSC standards is made by a manual switch.The input connector of CVA-2 is pin compatible with the 25-pin D-sub output connector of analog VTG boards. CVA-2 is powered through this connector so no extra batteries or power adapters are needed. The dimensions of CVA-2, including the connectors are: 57 x 30 x 127 mm (width, height, length) Output connectors : BNC for composite video , S-video connector
|
 |
