4 High speed LVDS frame grabber


  • Captures images from High Definition LVDS sources
  • 1080p @120Hz capture
  • 10 bits per color color
  • Two synchronized PCIe cards
  • Up to 500 continous 1080p frames

Two Cards, Four Channels

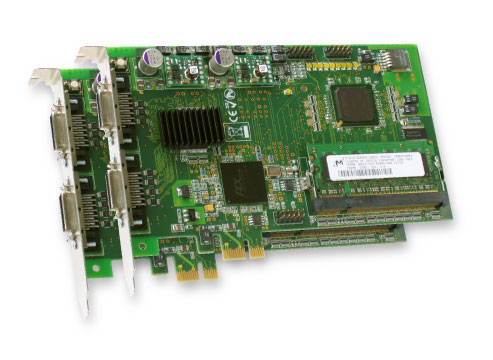

Two syncronized UFG-04 LVDS cards enable the capture of four channel LVDS (Quad LVDS) sources. The synchronization makes sure that the Master and the Slave card are capturing portions of the same input frame. The provided software will combine the portions together to combine a full quad frame for viewing and storage. The maximum capturing speed in four channel LVDS mode is 540 Mpix/s enabling the capture of e.g. 1080p @ 120 Hz input.

UFG-04 LVDS frame grabber enables the capture of high resolution LVDS video with the full 10 bits per color depth. The on‑board frame buffer enables the capture of frame-to-frame video clips regardless of the PC bus bottlenecks.

Optimal for Testing Video Interfacing

UFG-04 LVDS is an optimal tool for testing the fidelity of display input electronics. The capture card replaces the actual flat panel display for testing. The flexible design of the internal data handling enables custom data input configurations and advanced on-board image functions.
