  • HDMI 1.3 Deep Color Capture
  • Up to 1920x1200@60 (RB) and
    1080p60 Full HD
  • Up to 12 bits per color depth
  • Up to 500 frames on-board capture
  • User programmable EDID
  • High speed PCIe bus


HDMI 1.3 Stream Analyzer

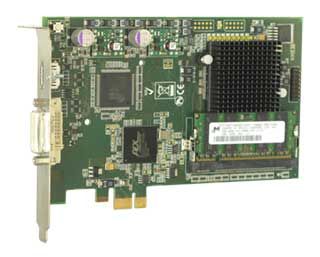

UFG-04 HDMA frame grabber card enables the capture of HDMI 1.3 content with up to 12 bits per color component and resolution up to VESA 1920x1200@60 (RB) and Full HD 1080p60. The on-board frame buffer enables the capture of up to 500 frame-to-frame video clips regardless of the PC bottlenecks.

Analyze Image and Metadata

Unigraf HDMA Tool that includes UFG-04 HDMA card is an unique tool for testing HDMI source devices. You can easily verify the fidelity of the image frame to frame, pixel to pixel, bit to bit. You can monitor all information on the HDMI stream including video, audio, DDC communication and InfoFrames. The SDK with DLL library enables the full functionality in custom testing systems.
