High Definition Frame Grabber



  • Captures images and streams from RGB and DVI video
  • Video for Windows compatible
  • Video for Linux Two (V4L2) compatible
  • Compact half size PCI card
  • Automated display mode and sync detection
  • Image captured in one video frame
  • HW scaling from half input image size to 1600 x 1200

High Definition Capture of RGB and DVI Video

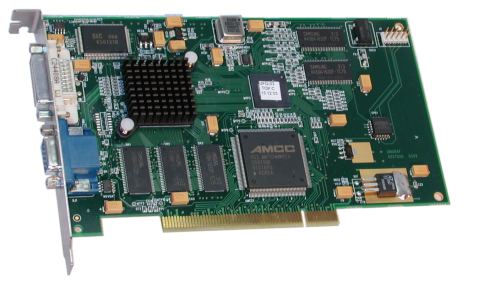

UFG-03 is a versatile video frame grabber that enables the capture, printing or transmission of the screen of any PC or other equipment. Tools often available in a standard PC can be used to store the video as single images or video streams. Application areas for the UFG-03 can be found in industrial, medical, multimedia or in maritime environment.

Two Performance Models

UFG-03 Hidef – in native mode up to 1600 x 1200 @ 60 Hz and 1280 x 1024 @ 85 Hz
UFG-03 Std – in native mode up to 1280 x 1024 @ 60 Hz

Compatible with Standard Windows Applications

UFG-03 can be used with a wide selection of video capturing and steaming tools. Any application supporting Video for Windows (VfW) automatically recognises UFG-03. Also the UFG-03 tools are available in those applications.
For areas where a custom application is necessary, the UFG-03 Extended Driver Interface provides a direct access to its all functions and parameters. A SDK with example applications, DLL library and example source codes for C++, Visual Basic and LabView is included.

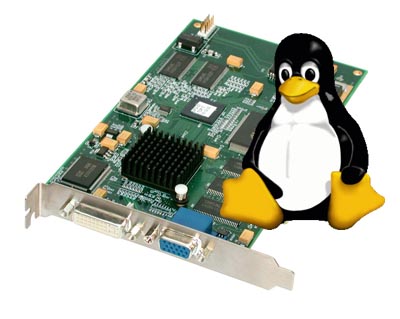

In order to support users of the popular Linux operating systems Unigraf has developed drivers for its UFG-03 HiDef high definition frame grabber. The drivers provide compatibility to Video for Linux Two (V4L2) versions 2.4.31 and 2.6.XX.

Automatic Video Signal Detection

The UFG-03 automatically detects all standard VESA display modes. In addition to that, UFG-03 can be used with most sync modes from HS/VS and Csync to Sync on Green.
